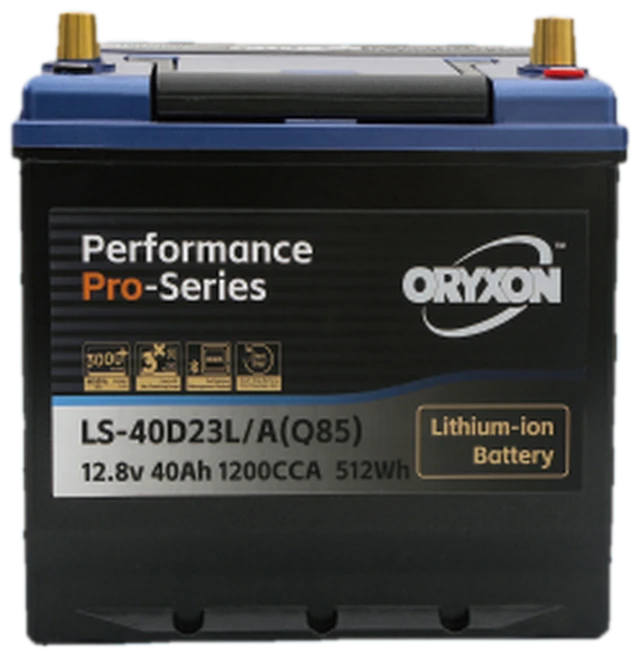

Q85 (JIS D23)
LS-40D23L/A • LS-40D23R/A
12.8 V40 Ah1,200 CCA512 Wh
Japanese start-stop (i-stop) cars using a Q-85/D23 case, 238 mm long. Left and right terminal layouts.
View Q85 detailsORYXON lithium car battery range
Thirteen Performance Pro-Series models across the most common JIS and DIN/EN case sizes. Every battery is a 12.8 V LiFePO4 drop-in replacement for a conventional, EFB or AGM 12 V battery — with a built-in Bluetooth BMS, CE, UN38.3 and RoHS certification.
How to pick your size: look at the label on your current battery. Japanese cars usually show a JIS code such as Q-85 (D23) or S-95 (D26); continental cars use DIN/EN sizes written as H5/LN2, H6/LN3, H7/LN4 or H8/LN5 — the case length (240–352 mm) tells them apart. Match the code and terminal layout (L/R), and choose the capacity you want. Unsure? Send us a photo of your battery label and we’ll confirm the fit.

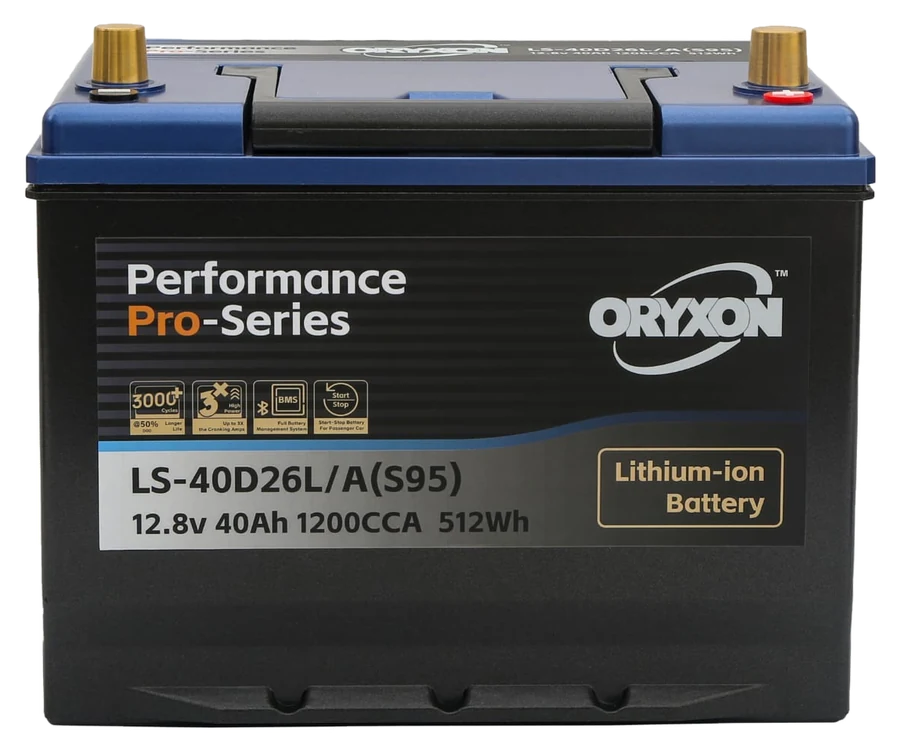

S95 (JIS D26)
LS-40D26L/A • LS-40D26R/A • LS-60D26L/A • LS-60D26R/A
12.8 V40–60 Ahup to 1,500 CCA
Larger JIS case (260 mm) for Toyota hybrids, MPVs and diesel models. Two capacities, L/R layouts.
View S95 details

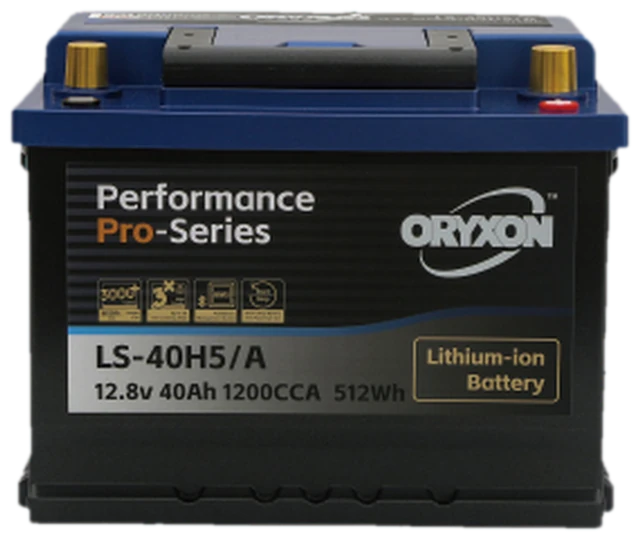

H5 / LN2
LS-40H5/A
12.8 V40 Ah1,200 CCA512 Wh
240 mm DIN case for compact European and Korean cars with start-stop.
View H5 details

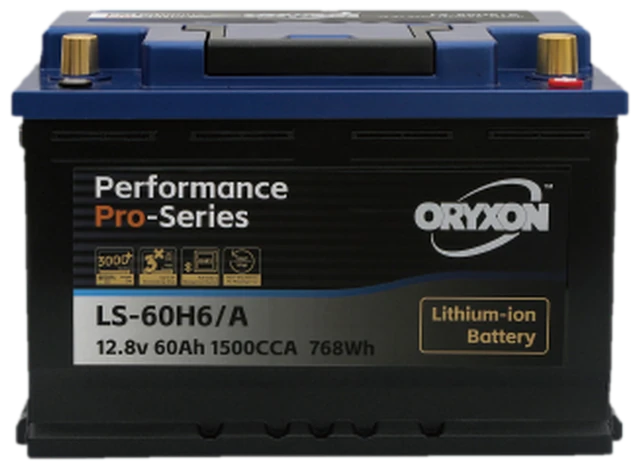

H6 / LN3
LS-40H6/A • LS-60H6/A
12.8 V40–60 Ahup to 1,500 CCA
278 mm DIN case — the most common European mid-size battery format.
View H6 details

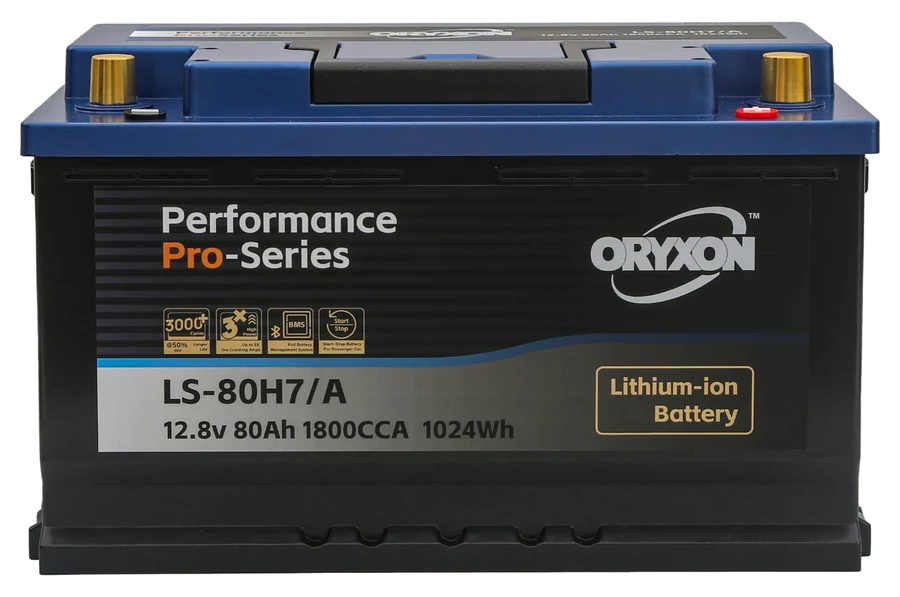

H7 / LN4
LS-60H7/A • LS-80H7/A
12.8 V60–80 Ahup to 1,800 CCA
315 mm DIN case for continental sedans and SUVs — the flagship 80 Ah delivers 1,800 CCA.
View H7 detailsH8 / LN5
LS-60H8/A • LS-80H8/A
12.8 V60–80 Ahup to 1,800 CCA
352 mm DIN case for large luxury sedans and SUVs with heavy electrical loads.
View H8 details
Full Specifications
Product models and parameters
All models are 12.8 V nominal lithium iron phosphate (LiFePO4) with built-in BMS. The last two columns show the lead-acid battery each model replaces.
| Model | Size code | Dimensions L×W×H (TH), mm | Voltage | Capacity | CCA | Energy | Replaces (lead-acid) |
|---|---|---|---|---|---|---|---|
| LS-40D23L/A | Q85 (D23, L) | 238 × 172 × 200 (221) | 12.8 V | 40 Ah | 1,200 A | 512 Wh | 65 Ah / 750 CCA |
| LS-40D23R/A | Q85 (D23, R) | 238 × 172 × 200 (221) | 12.8 V | 40 Ah | 1,200 A | 512 Wh | 65 Ah / 750 CCA |
| LS-40D26L/A | S95 (D26, L) | 260 × 172 × 203 (224) | 12.8 V | 40 Ah | 1,200 A | 512 Wh | 65 Ah / 750 CCA |
| LS-40D26R/A | S95 (D26, R) | 260 × 172 × 203 (224) | 12.8 V | 40 Ah | 1,200 A | 512 Wh | 65 Ah / 750 CCA |
| LS-60D26L/A | S95 (D26, L) | 260 × 172 × 203 (224) | 12.8 V | 60 Ah | 1,500 A | 768 Wh | 96 Ah / 1,125 CCA |
| LS-60D26R/A | S95 (D26, R) | 260 × 172 × 203 (224) | 12.8 V | 60 Ah | 1,500 A | 768 Wh | 96 Ah / 1,125 CCA |
| LS-40H5/A | H5 / LN2 | 240 × 174 × 190 (190) | 12.8 V | 40 Ah | 1,200 A | 512 Wh | 65 Ah / 750 CCA |
| LS-40H6/A | H6 / LN3 | 278 × 174 × 190 (190) | 12.8 V | 40 Ah | 1,200 A | 512 Wh | 65 Ah / 750 CCA |
| LS-60H6/A | H6 / LN3 | 278 × 174 × 190 (190) | 12.8 V | 60 Ah | 1,500 A | 768 Wh | 96 Ah / 1,125 CCA |
| LS-60H7/A | H7 / LN4 | 315 × 174 × 190 (190) | 12.8 V | 60 Ah | 1,500 A | 768 Wh | 96 Ah / 1,125 CCA |
| LS-80H7/A | H7 / LN4 | 315 × 174 × 190 (190) | 12.8 V | 80 Ah | 1,800 A | 1,024 Wh | 128 Ah / 1,500 CCA |
| LS-60H8/A | H8 / LN5 | 352 × 174 × 190 (190) | 12.8 V | 60 Ah | 1,500 A | 768 Wh | 96 Ah / 1,125 CCA |
| LS-80H8/A | H8 / LN5 | 352 × 174 × 190 (190) | 12.8 V | 80 Ah | 1,800 A | 1,024 Wh | 128 Ah / 1,500 CCA |
L/R indicates terminal layout as seen with terminals nearest to you. TH = total height including terminals. Specifications may be updated without prior notice.
Not sure which size fits?
WhatsApp us a photo of your current battery label — we’ll confirm the correct ORYXON model, availability and price.
